一、主要特点：
1、 进出口口径相同，且位于同一中心线上，可像阀门一样安装于管路之中，外形紧凑美观，占地面积小，建筑投入低，加上防护罩则可置于户外使用；
2、 泵分标准直联式、便拆式两大类，直联式具有结构紧凑、重量轻、占空间小等特点，便拆式具有维修方便的特点。
3、 效率高，较老型循环泵高10%，寿命长50%。
4、 泵表面采用先进的电泳烤漆技术（便拆式中间采用不锈钢冲压防护罩），更加美观；
5、 采用标准型节能电机，泵轴采用不锈钢材质，合金材质的机械密封更加耐磨；
6、 便拆式泵安装检修方便，无需拆动管路系统和泵体、电机，只要拆下联轴器即可更换机械密封。
二、适用领域：
工业、冶金、城市给排水、化工、高层建筑增压送水、纺织、园林灌溉、木材加工、消防增压、造纸、远距离输送、饭店、浴室、宾馆、暖通制冷循环、城市住房采暖循环、浴室等冷暖水循环增压及设备配套。
三、性能参数：
流量（Q）:10~1500m3/h,扬程（H）:8~160m,口径（mm）:DN32~DN450mm,
介质温度（T）：-30℃~180℃，运行压力：最大2.5Mpa，材质选项：铸铁、铸钢、不锈钢。

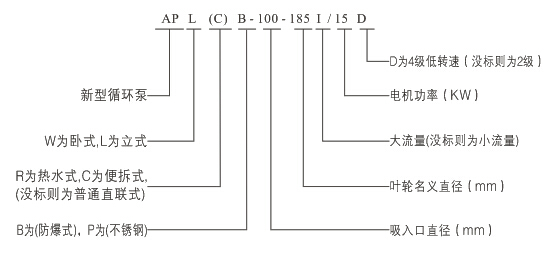

四、型号意义：
五、性能参数表：
|
型号
|
流量
（m3/h）
|
扬程
(m)
|
电机功率
(kw)
|
|
型号
|
流量
（m3/h）
|
扬程
(m)
|
电机功率
(kw)
|
|
APL50-185/1.5
|
18
|
16
|
1.5-2
|
APL100-350/15D
|
108
|
32
|
15.0-4
|
|
APL50-185/2.2
|
18
|
22
|
2.2-2
|
APL100-350/18.5D
|
108
|
40
|
18.5-4
|
|
APL50-185/3.0
|
18
|
32
|
3.0-2
|
APL100-185I/11.0
|
144
|
20
|
11.0-2
|
|
APL50-185/4.0
|
18
|
42
|
4.0-2
|
APL100-185I/15.0
|
144
|
24
|
15.0-2
|
|
APL50-235/5.5
|
18
|
50
|
5.5-2
|
APL100-185I/18.5
|
144
|
32
|
18.5-2
|
|
APL50-235/7.5
|
18
|
60
|
7.5-2
|
APL100-185I/22.0
|
144
|
40
|
22.0-2
|
|
APL50-235/7.5
|
18
|
75
|
7.5-2
|
APL100-235I/30.0
|
144
|
50
|
30.0-2
|
|
APL50-235/11
|
18
|
90
|
11.0-2
|
APL100-235I/37.0
|
144
|
60
|
37.0-2
|
|
APL50-185I/2.2
|
25
|
16
|
2.2-2
|
APL100-285I/45.0
|
144
|
70
|
45.0-2
|
|
APL50-185I/3
|
25
|
24
|
3.0-2
|
APL100-285I/55.0
|
144
|
82
|
55.0-2
|
|
APL50-185I/4
|
25
|
32
|
4.0-2
|
APL100-285I/75.0
|
144
|
95
|
75.0-2
|
|
APL50-185I/5.5
|
25
|
40
|
5.5-2
|
APL100-350I/90.0
|
144
|
110
|
90.0-2
|
|
APL50-235I/7.5
|
25
|
50
|
7.5-2
|
APL100-350I/90.0
|
144
|
125
|
90.0-2
|
|
APL50-235I/11
|
25
|
60
|
11.0-2
|
APL100-350I/110.0
|
144
|
140
|
110.0-2
|
|
APL50-285I/15
|
25
|
75
|
15.0-2
|
APL125-285/11D
|
144
|
18
|
11.0-4
|
|
APL50-285I/18.5
|
25
|
90
|
18.5-2
|
APL125-285/15D
|
144
|
22
|
15.0-4
|
|
APL65-185/2.2
|
36
|
14
|
2.2-2
|
APL125-350/18.5D
|
144
|
28
|
18.5-4
|
|
APL65-185/3.0
|
36
|
18
|
3.0-2
|
APL125-350/22D
|
144
|
35
|
22.0-4
|
|
APL65-185/4.0
|
36
|
24
|
4.0-2
|
APL125-440/30D
|
144
|
45
|
30.0-4
|
|
APL65-185/5.5
|
36
|
35
|
5.5-2
|
APL125-440/37D
|
144
|
52
|
37.0-4
|
|
APL65-185/7.5
|
36
|
40
|
7.5-2
|
APL125-440/45D
|
144
|
60
|
45.0-4
|
|
APL65-235/7.5
|
36
|
48
|
7.5-2
|
APL125-550/55D
|
144
|
70
|
55.0-4
|
|
APL65-235/11
|
36
|
60
|
11.0-2
|
APL125-550/55D
|
144
|
80
|
55.0-4
|
|
APL65-285/11
|
36
|
70
|
11.0-2
|
APL125-550/75D
|
144
|
90
|
75.0-4
|
|
APL65-285/15
|
36
|
80
|
15.0-2
|
APL125-285/15D
|
180
|
18
|
15.0-4
|
|
APL65-285/18.5
|
36
|
95
|
18.5-2
|
APL125-285/18.5D
|
180
|
22
|
18.5-4
|
|
APL65-185I/3
|
54
|
12
|
3.0-2
|
APL125-350/22D
|
180
|
28
|
22.0-4
|
|
APL65-185I/4
|
54
|
16
|
4.0-2
|
APL125-350/30D
|
180
|
30
|
30.0-4
|
|
APL65-185I/5.5
|
54
|
22
|
5.5-2
|
APL125-440/37D
|
180
|
45
|
37.0-4
|
|
APL65-185I/7.5
|
54
|
32
|
7.5-2
|
APL125-440/45D
|
180
|
52
|
45.0-4
|
|
APL65-185I/11
|
54
|
38
|
11.0-2
|
APL125-440/55D
|
180
|
60
|
55.0-4
|
|
APL65-235I/15
|
54
|
50
|
15.0-2
|
APL125-550/75D
|
180
|
70
|
75.0-4
|
|
APL65-235I/18.5
|
54
|
60
|
18.5-2
|
APL125-550/75D
|
180
|
80
|
75.0-4
|
|
APL65-285I/18.5
|
54
|
70
|
18.5-2
|
APL125-550/90D
|
180
|
95
|
90.0-4
|
|
APL65-285I/22.0
|
54
|
80
|
22.0-2
|
APL150-285I/18.5D
|
252
|
16
|
18.5-4
|
|
APL65-285I/30.0
|
54
|
95
|
30.0-2
|
APL150-285I/22D
|
252
|
20
|
22.0-4
|
|
APL80-185/5.5
|
72
|
20
|
5.5-2
|
APL150-285I/30D
|
252
|
24
|
30.0-4
|
|
APL80-185/7.5
|
72
|
26
|
7.5-2
|
APL150-350I/30D
|
252
|
28
|
30.0-4
|
|
APL80-185/11.0
|
72
|
32
|
11.0-2
|
APL150-350I/37D
|
252
|
35
|
37.0-4
|
|
APL80-185/15.0
|
72
|
40
|
15.0-2
|
APL150-440I/45D
|
252
|
45
|
45.0-4
|
|
APL80-235/18.5
|
72
|
50
|
18.5-2
|
APL150-440I/55D
|
252
|
52
|
55.0-4
|
|
APL80-235/22.0
|
72
|
60
|
22.0-2
|
APL150-440I/75D
|
252
|
60
|
75.0-4
|
|
APL80-285/30
|
72
|
82
|
30.0-2
|
APL150-550I/90D
|
252
|
70
|
90.0-4
|
|
APL80-285/37
|
72
|
95
|
37.0-2
|
APL150-550I/110D
|
252
|
80
|
110.0-4
|
|
APL80-350/45
|
72
|
110
|
45.0-2
|
APL150-550I/110D
|
252
|
90
|
110.0-4
|
|
APL80-350/55
|
72
|
125
|
55.0-2
|
APL200-350/30D
|
360
|
18
|
30.0-4
|
|
APL80-350/75
|
72
|
144
|
75.0-2
|
APL200-350/37D
|
360
|
24
|
37.0-4
|
|
APL80-350/5.5D
|
54
|
24
|
5.5-4
|
APL200-350/45D
|
360
|
32
|
45.0-4
|
|
APL80-350/7.5D
|
54
|
30
|
7.5-4
|
APL200-440/55D
|
360
|
40
|
55.0-4
|
|
APL80-350/11.0D
|
54
|
38
|
11.0-4
|
APL200-440/75D
|
360
|
50
|
75.0-4
|
|
APL100-185/7.5
|
108
|
20
|
7.5-2
|
APL200-440/90D
|
360
|
60
|
90.0-4
|
|
APL100-185/11
|
108
|
24
|
11.0-2
|
APL200-550/110D
|
360
|
70
|
110.0-4
|
|
APL100-185/15
|
108
|
32
|
15.0-2
|
APL200-550/132D
|
360
|
80
|
132.0-4
|
|
APL100-185/18.5
|
108
|
40
|
18.5-2
|
APL200-550/160D
|
360
|
95
|
160.0-4
|
|
APL100-235/22
|
108
|
50
|
22.0-2
|
APL200-350I/37D
|
432
|
20
|
37.0-4
|
|
APL100-235/30
|
108
|
60
|
30.0-2
|
APL200-350I/45D
|
432
|
26
|
45.0-4
|
|
APL100-285/37
|
108
|
70
|
37.0-2
|
APL200-350I/55D
|
432
|
32
|
55.0-4
|
|
APL100-285/45
|
108
|
82
|
45.0-2
|
APL200-440I/75D
|
432
|
40
|
75.0-4
|
|
APL100-285/55
|
108
|
95
|
55.0-2
|
APL200-440 I /90D
|
432
|
50
|
90.0-4
|
|
APL100-350/55
|
108
|
110
|
55.0-2
|
APL200-440 I /110D
|
432
|
60
|
110.0-4
|
|
APL100-350/75
|
108
|
125
|
75.0-2
|
APL200-550 I /132D
|
432
|
70
|
132.0-4
|
|
APL100-350/90
|
108
|
140
|
90.0-2
|
APL200-550 I /160D
|
432
|
80
|
160.0-4
|
|
APL100-350/11D
|
108
|
26
|
11.0-4
|
APL200-550 I /200D
|
432
|
95
|
200.0-4
|
  |
